Solid & Liquid Waste Handling Systems
Solid & Liquid Waste Handling Systems
Powerful Waste Handling for Cleaner Biogas Operation
Pretreatment House designs and delivers advanced systems to manage solid and liquid waste streams, making them ideal for biogas pre-treatment. These include compactors, liquid extractors, live bottom bins, sludge dewatering presses, and sludge cleaners. At SambhUya R Energy, we bring these solutions into India, adapted to local substrates and operational demands.
By integrating these systems, biogas plants can extract liquids from solid streams, reduce waste volume, protect downstream equipment, and boost overall processing reliability.
Why These Systems Matter
- Liquid extraction & compaction reduces disposal costs and improves handling.
- Sludge cleaning removes harmful contaminants (plastics, fibers, metals), safeguarding pumps, presses, and separators downstream.
- Volume reduction means less space, lower transport, and easier handling of solids.
- Improved flow & buffer control via live bottom bins ensures consistent feeding into the digestion process.
- Modular adaptability lets you integrate these units depending on line layout, waste stream characteristics, and plant capacity.

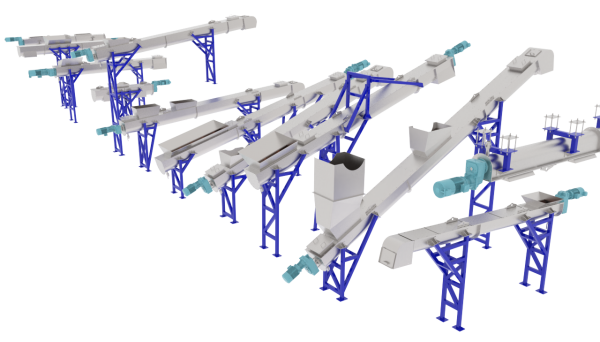

CCS-HD
Heavy Duty Screw Conveyor

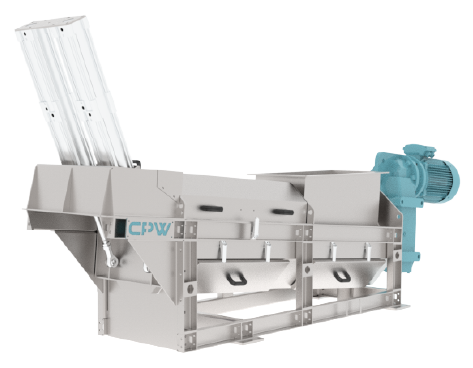

CPW
Unit for Liquid Extraction, Separation and Waste Compaction

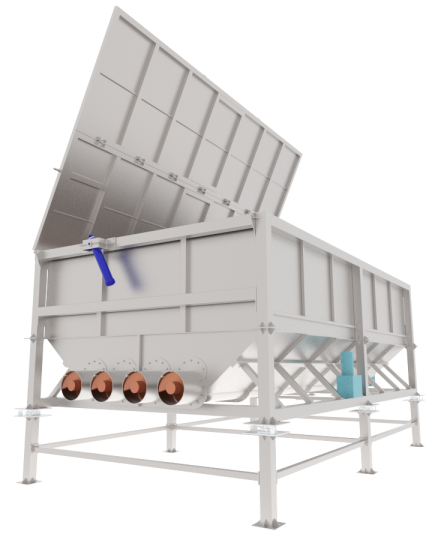

LBB60
Live Bottom Bin for Storage and Controlled Feeding

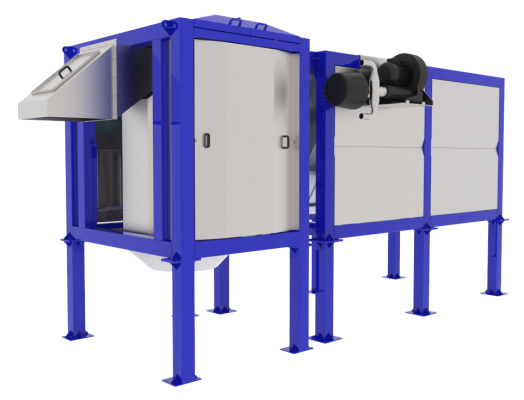

OPERA150
Depackaging Unit for Organic Waste

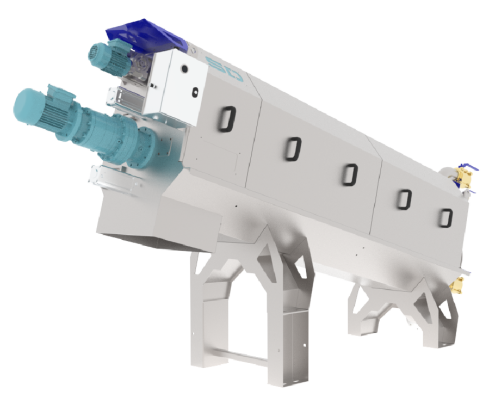

SD
Screw Press for Sludge

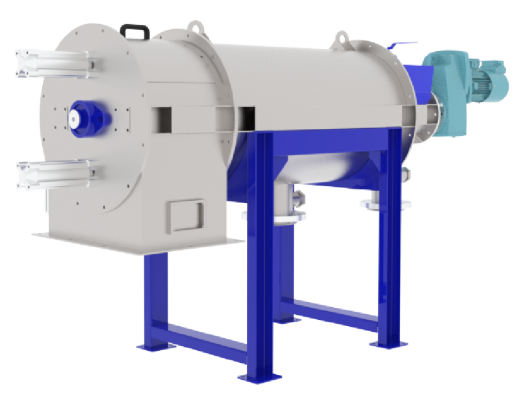

SDH
Sludge Cleaner

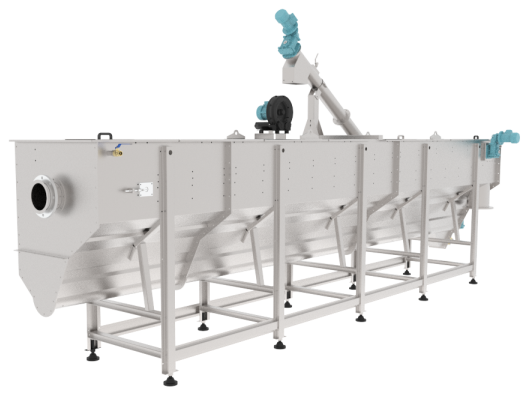

WAU-SW
Advanced Pre-Treatment Equipment for Settlable and Floatable Contaminants
Product Lineup & Features
| Product | Best Use / Ideal Setting | Key Features & Highlights | Installation & Adaptability Notes |
|---|---|---|---|
| CCS-HD (Heavy Duty Screw Conveyor) | Continuous conveying of mixed solids, semi-liquids & liquids | Transports heterogeneous materials 24/7; minimal screw-to-trough contact; constructed in lengths up to 40 m; various material options (SS304, SS316, Hardox) | Can be integrated inline; optional sensors, greasers, sliding gates |
| WAU-SW (Settling + Floatable Removal Unit) | Pre-treatment of organic streams to remove grit and floating debris | Up to 97 % removal efficiency for particles ≥ 200 µm; dewaters grit to ~20 % DM; multi-stage separation + surface scrapers in SW variant | Available in flows 10–100 m³/h; built with AISI 304L/316L; low energy, continuous operation |
| CPW (Compactor / Press / Extraction Unit) | Extraction & compaction of wastes / sludges / organics | Liquid extraction, extrusion, volume reduction | Compact design, integrates with upstream/downstream units |
| LBB60 (Live Bottom Bin) | Buffering, storage, controlled discharge of solids | Homogeneous flow, buffer storage, consistent discharge | Positioned upstream of conveyors or feeders |
| OPERA150 | Heavy-duty waste handling / mixed stream feeding | Designed for high throughput of mixed waste | Use in demanding feed lines |
| SD (Screw Press / Sludge Dewatering) | Dewatering sludge before digestion or disposal | Reduces water content, improves solid fraction | Ideal as a pre-digestion step |
| SDH (Sludge Cleaner / Pre-screening Unit) | Sludge pretreatment, contaminant removal | Mesh screening (1–12 mm), removal of plastics/fibers/metals, dewatering to 30–45 % DM | Protects downstream pumps & separators |
