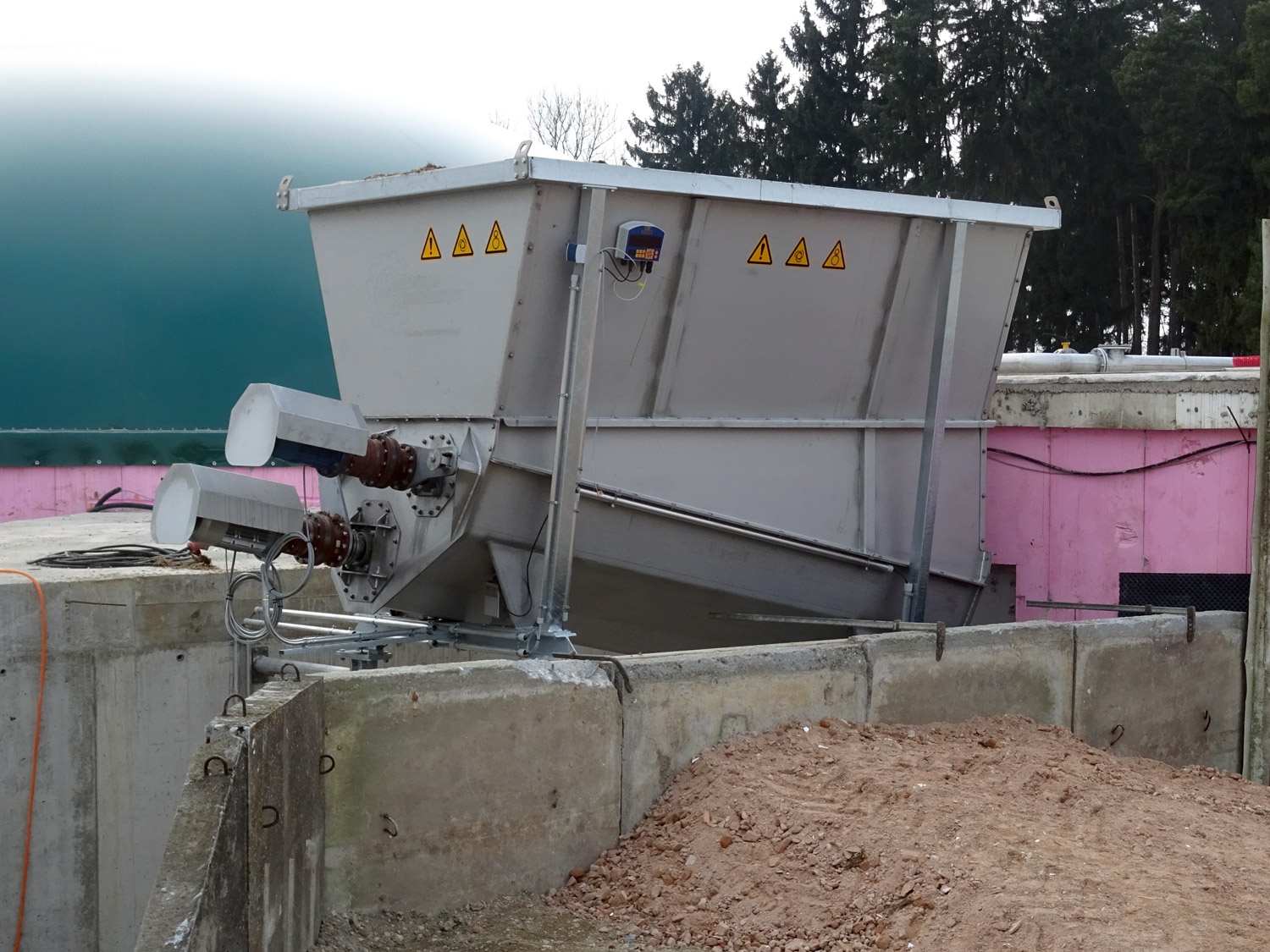

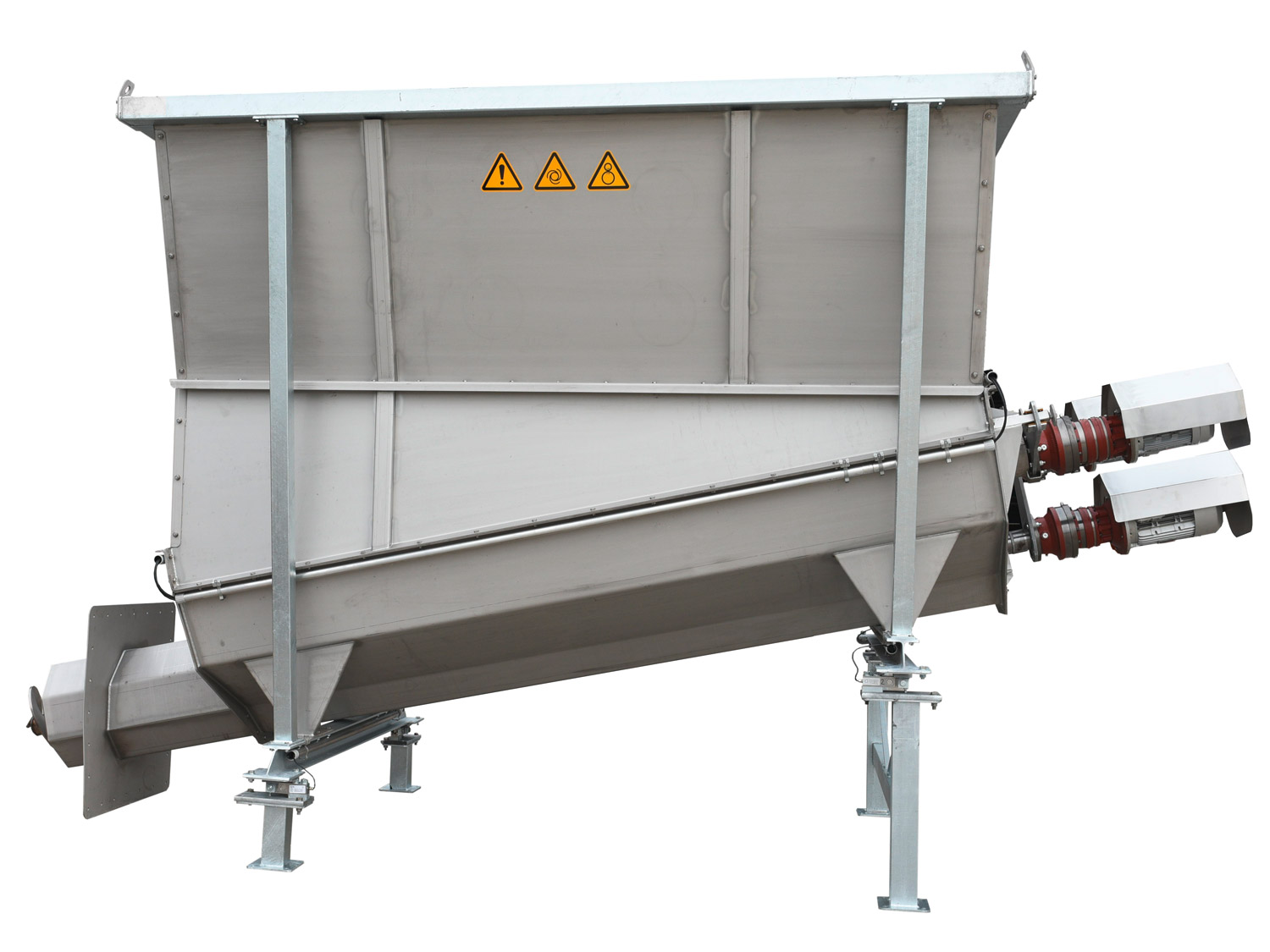

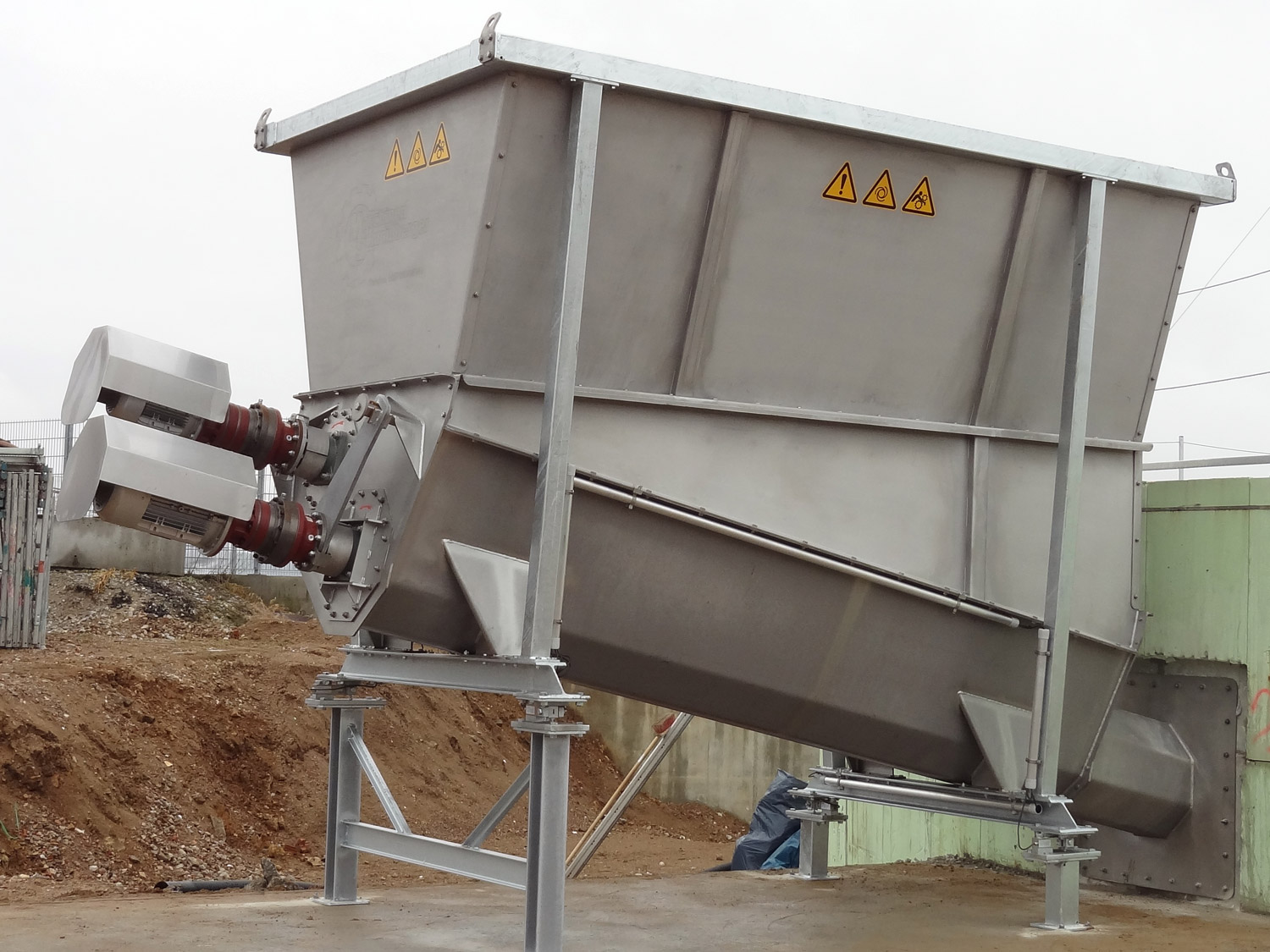

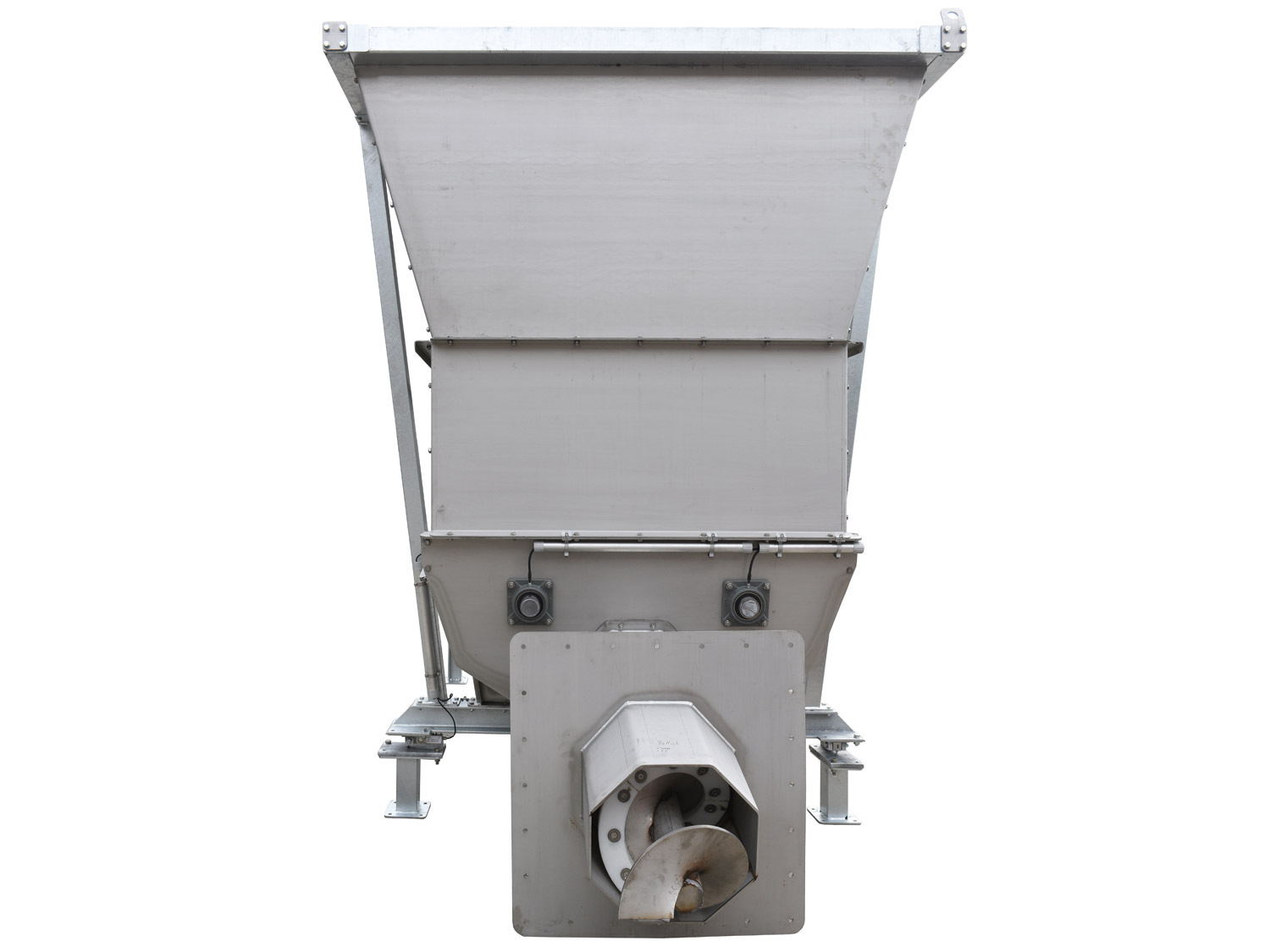

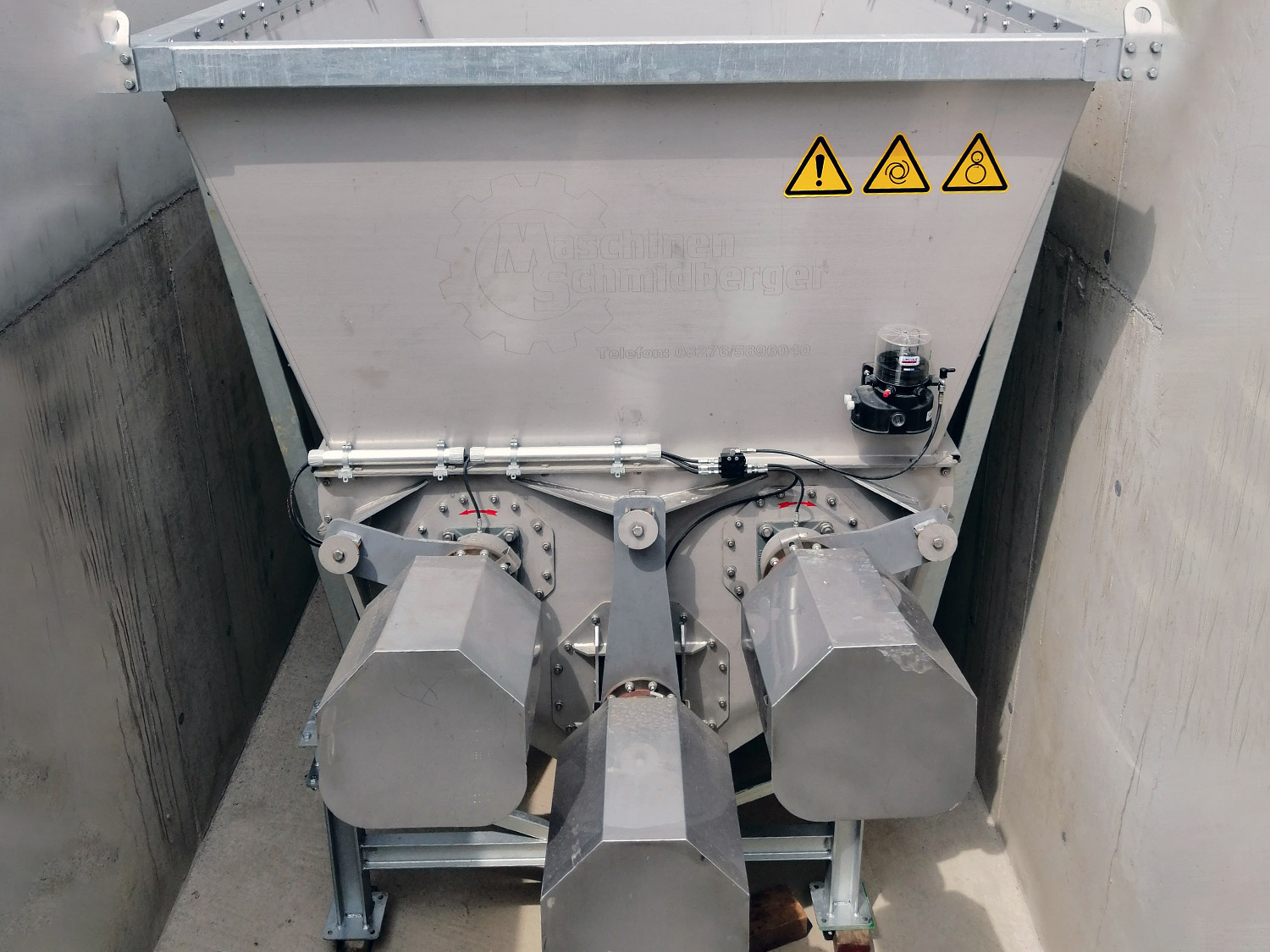

Sloping Insertion – Robust Solid-Feeding for Biogas Plants
Why It Matters
High-quality injection of solid biomass and organic residues is pivotal to the performance of a biogas plant. Without reliable solid-matter feeders, you risk inefficient substrate feeding and reduced gas output. The sloping insertion unit offers a dependable solution for large- and small-scale digesters alike.
Tailored for Every Scale
From 5 m³ to 40 m³ hopper/feeding sizes, the sloping insertion system enables precise matching to your plant’s needs. It’s designed to deliver high conveying capacity (up to ~55 m³/h, depending on substrate) and sustained feeding performance.
Ideal for
- Energy-crop and organic-residue feeding
- Biogas plants requiring steady, high-capacity solid dosing
- Upgrades of existing systems seeking enhanced reliability and efficiency
- Installations where fast commissioning and minimal disturbance are crucial
Engineering Highlights
- Robust Construction: Base tray made of 8 mm thick stainless steel (V2A) for standard sizes, ensuring structural stability and long service life. The 5 m³ version uses 6 mm sheet for cost-effective deployment.
- High Capacity Screw Feed: Integrated side-entry stuffing screw engineered for efficient, high-throughput conveying of solids into the fermenter.
- Plug-and-Play Controls: Optional scale integration and central lubrication system facilitate automation and consistent feeding intervals—ensuring the same portion size every time.
- Quick Installation: Can be mounted laterally on the tank wall, enabling rapid integration and minimal downtime.
- Low-Maintenance: High-grade stainless steel construction and advanced design eliminate bridging and reduce wear—resulting in reliable long-term operation.
Why Choose This Solution
At SambhUya R Energy, we bring this exceptional dosing technology to India—with full support and adaptation for local substrates and plant conditions. From model selection to installation and after-sales service, we ensure your solid-feeding system integrates smoothly, runs reliably and delivers the performance you need.
