Agitators
Agitators
Efficient Mixing for Stable, High-Yield Biogas Systems
Biogas agitators are essential for homogenizing fermentation substrates and ensuring stable plant operations. Our range of Paulmichl agitators are renowned for their strength, efficiency, and 24/7 durability.
Biogas agitators from Paulmichl represent robust engineering, built for continuous operation. These agitators ensure substrates in fermenters, secondary digesters, pre-pits, and storage tanks remain well-mixed, preventing sedimentation and floating layers. As a result, microbial access to the organic material is optimized, temperature distribution is evened out, and biogas production is maximized.
Agitators must function 24/7 and adapt to changing fill levels and substrate conditions. The right choice (or combination) depends on your plant design, substrate properties, and operational demands.
Whether you need submersible agitators, long-axis agitators, or specialized fermenter mixers, we provide the right solution for your plant’s needs.

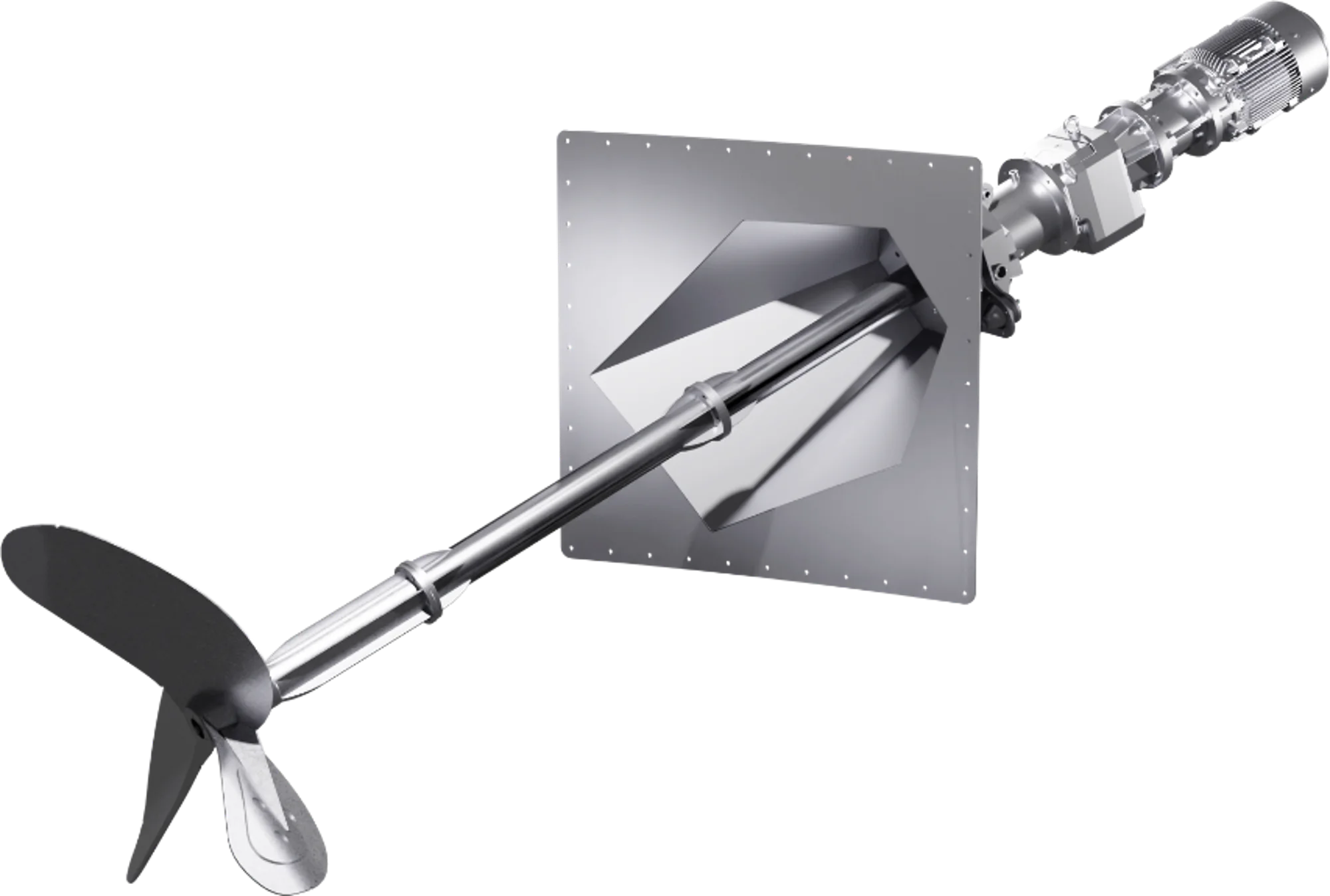

Mammut RF3

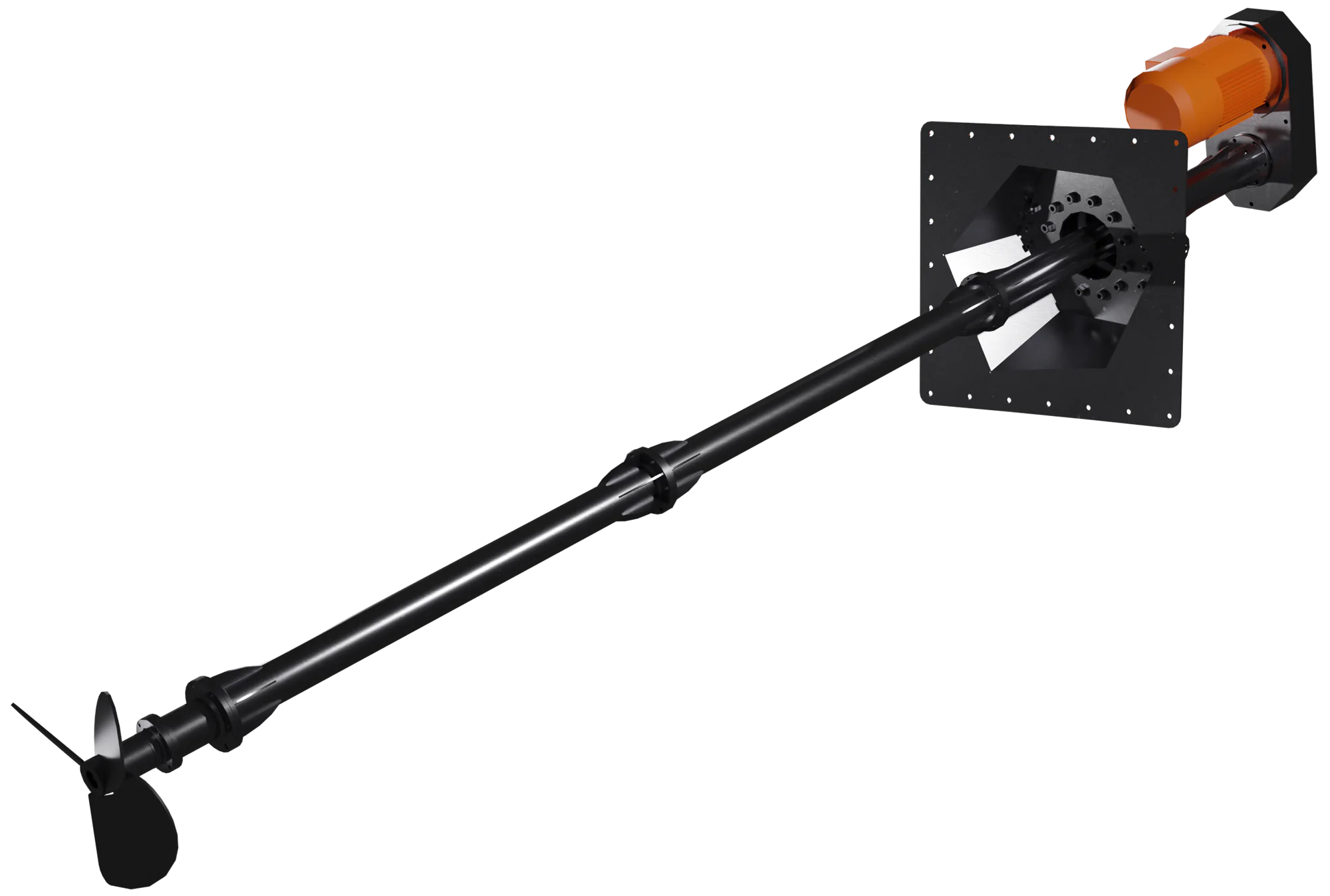

BG 500

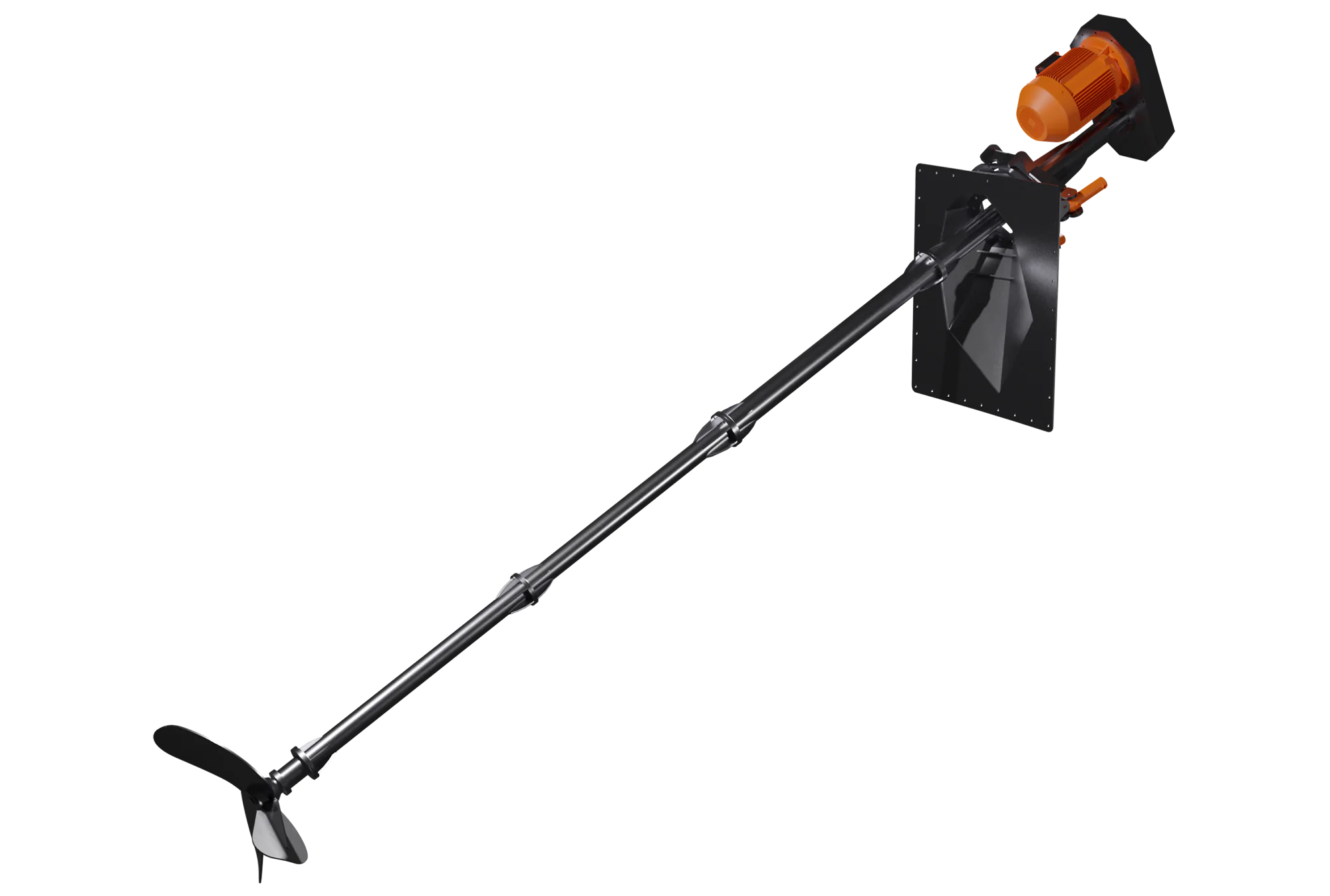

Multimix

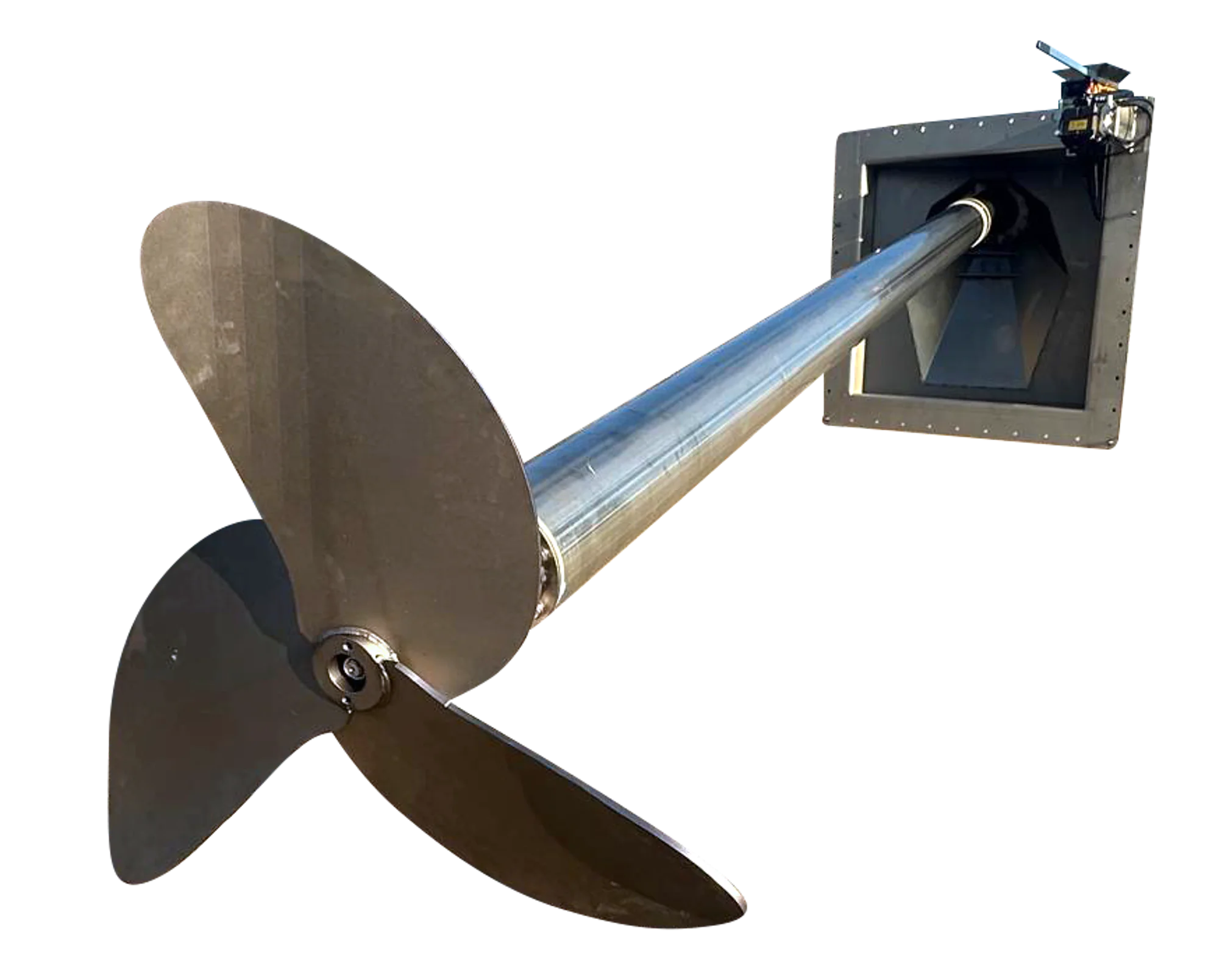

Ecomix

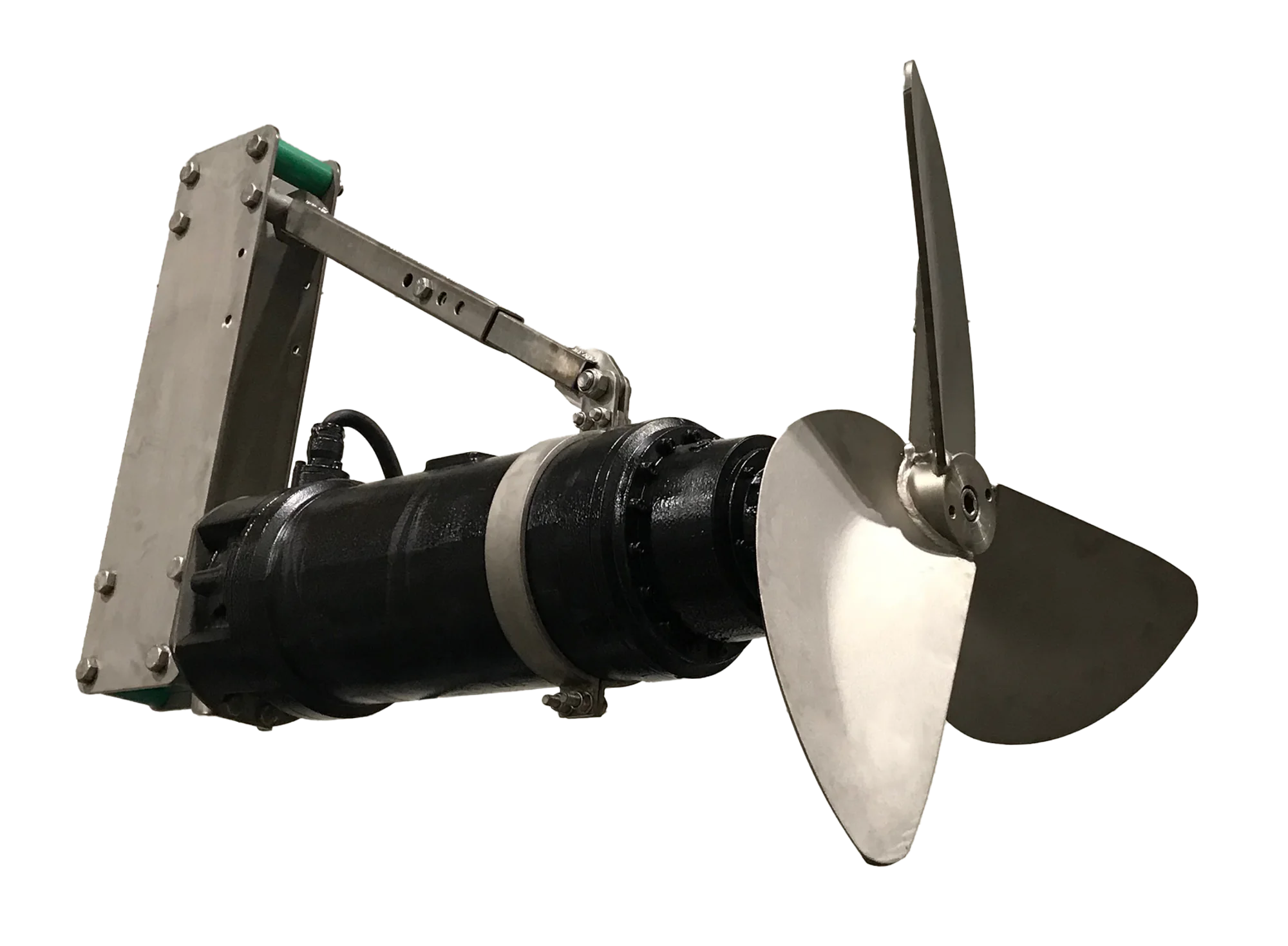

Submersible mixer

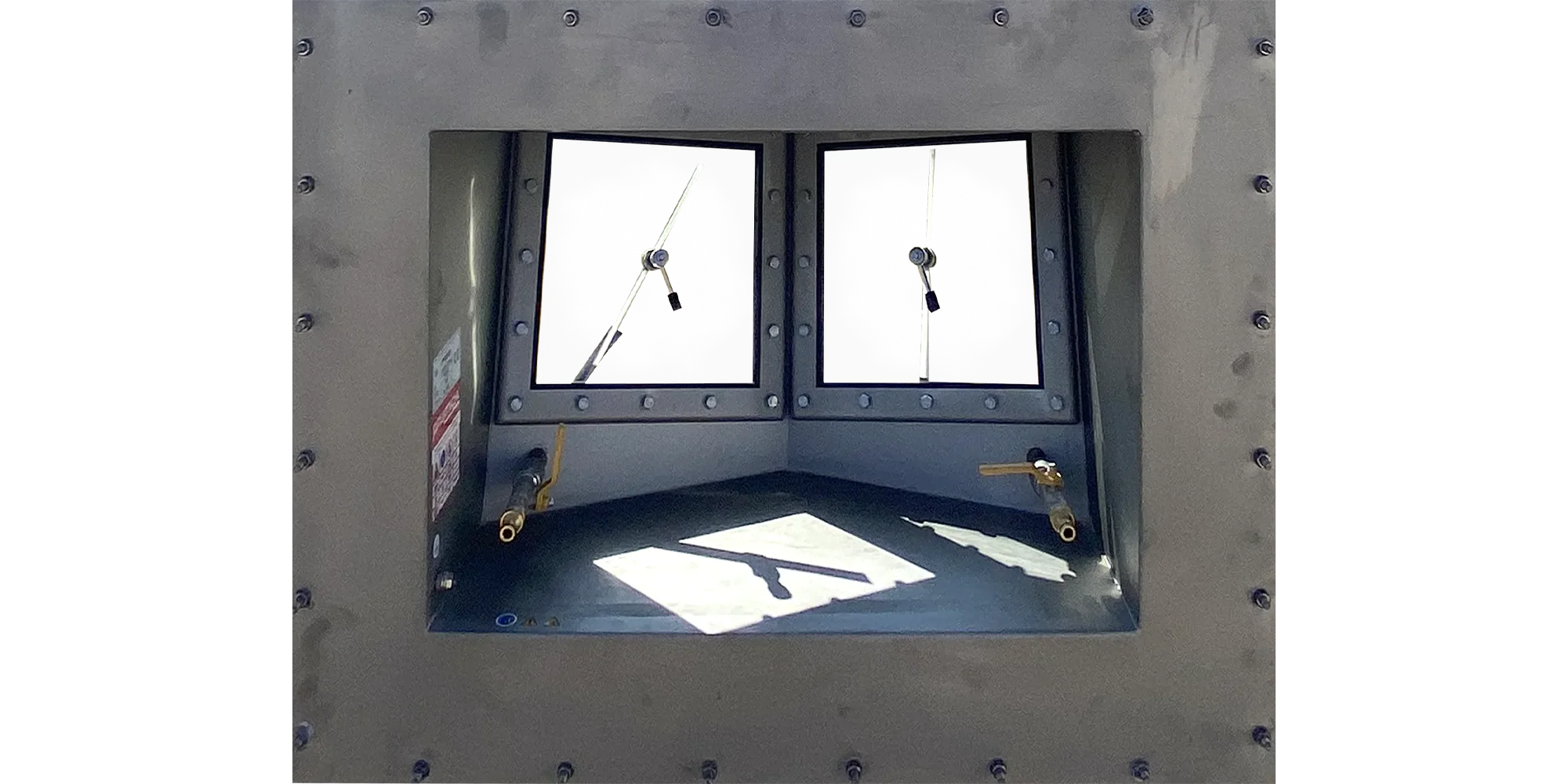

Panorama sight glasses

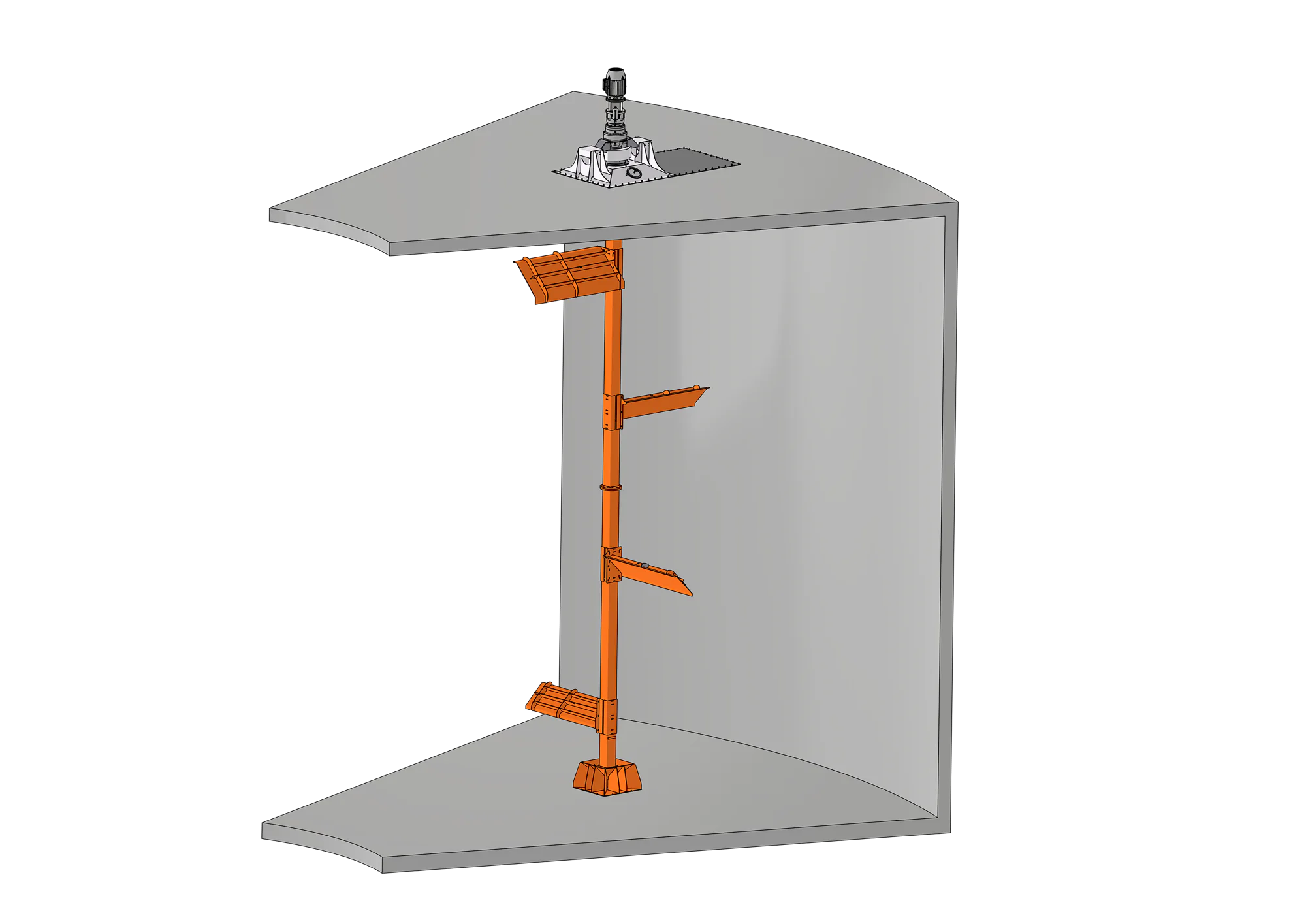

Paddle agitator type Goliath

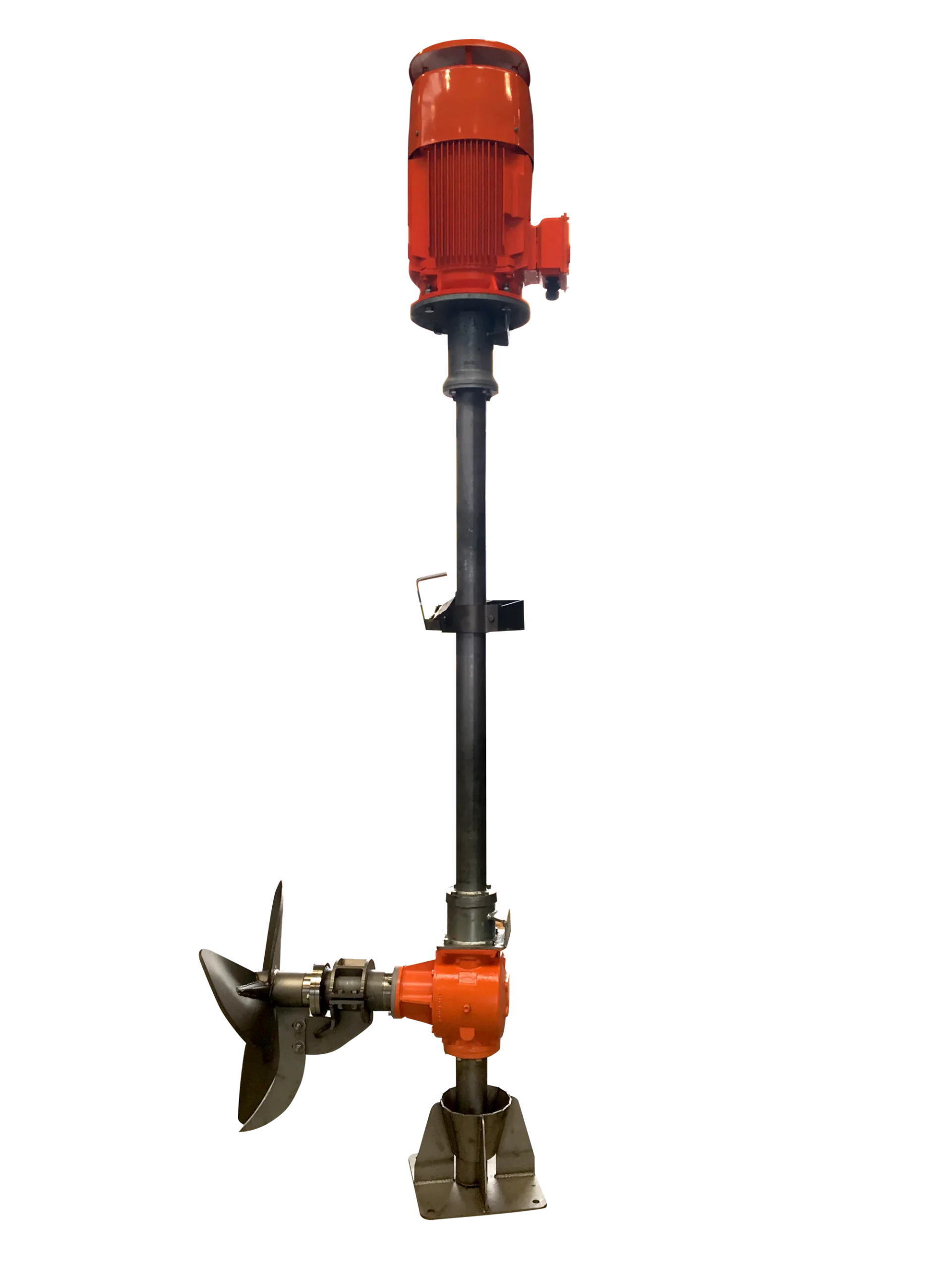

VR agitator
Agitator Product Lineup & Features
Below is a consolidated table summarizing Paulmichl’s agitator models, their intended uses, and standout features. This is adapted into SRE’s voice so your clients can quickly compare options and understand which is ideal for their setup.
| Agitator Model | Best Application / Ideal Setting | Key Features & Highlights | Installation & Adaptability Notes |
|---|---|---|---|
| Mammut RF3 | Constant fill-level fermenters | Powerful, high-quality, efficient mixing | Supports wall & ceiling mounting |
| BG 500 | Varying fill levels, elevated tanks | Adaptable to different levels, robust design | Suitable for use in tanks with changing heights |
| Multimix | Changing fill levels, variable operation | Strong transmission via toothed belt, multiple variants | Flexible in design to suit various tank types |
| Ecomix | Regular fermenter use | Robust, modular design | Suited for constant fill-level use |
| Submersible Mixer | Deep tanks, submerged mixing | Height adjustable, thermal monitoring, long lifespan | Optimized for submerged applications |
| VR Agitator | Variable depth tanks | Robust construction, adjustable height | Multiple length options available |
| Paddle Agitator (Type Goliath) | Tanks with floating layers | Efficient mixing of floating layers, ceiling mountable | Space-saving ceiling design |
| Panorama Sight Glasses | Inspection / monitoring | Enlarged viewing, proper alignment of agitators | Useful for maintenance & alignment checking |
How Biogas Agitators Help
- Prevent stratification: avoid sinking or floating layers in fermenters
- Ensure homogeneity: keep biomass uniformly mixed for effective digestion
- Support temperature balance: help maintain optimal thermal conditions
- Promote microbial contact: ensure microbes reach feedstock efficiently
- Boost biogas yield: through consistent mixing and substrate availability
Benefits You’ll Realize
- Improved digestion efficiency thanks to uniform mixing
- Reduced dead zones or clogging in fermenters
- Greater biogas yields due to optimized microbial access
- Lower maintenance with robust, well-engineered equipment
- Scalable solutions adaptable as your plant grows
